Watch this video to see how to change the unit of measurements in action, or follow the steps below.
PLEASE NOTE that dimensions for items will always display with the measurement with which the catalog was created. For example, Sample F will always display in Imperial and Sample M will always display in Metric regardless of the preference set.
From Metric to Imperial:
- Right click on an empty space on your Floorplan and select Display Settings > Work Area. Set the Display Measures In field to Imperial – inches only (22").

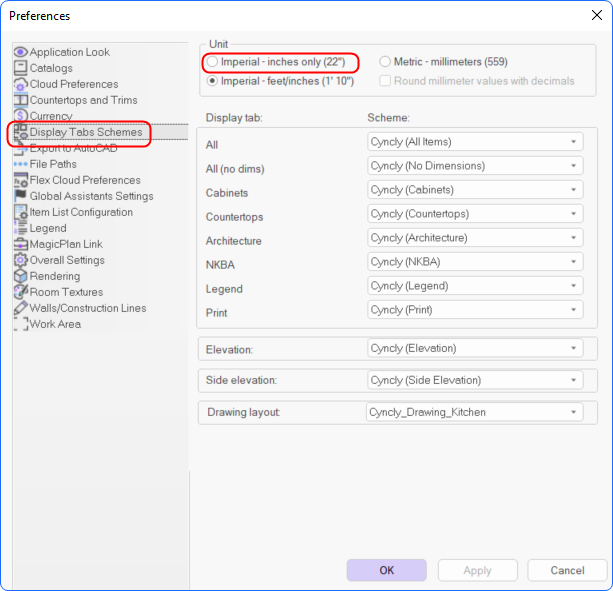

- Next, go to File Preferences and select Display Tab Schemes. Verify that the Unit radio button is checked to Imperial – inches only (22") as well.
- Close and re-open Design.
From Imperial to Metric:
- Right click on an empty space on your Floorplan and select Display Settings > Work Area. Set the Display Measures In field to Metric - millimeters (559).

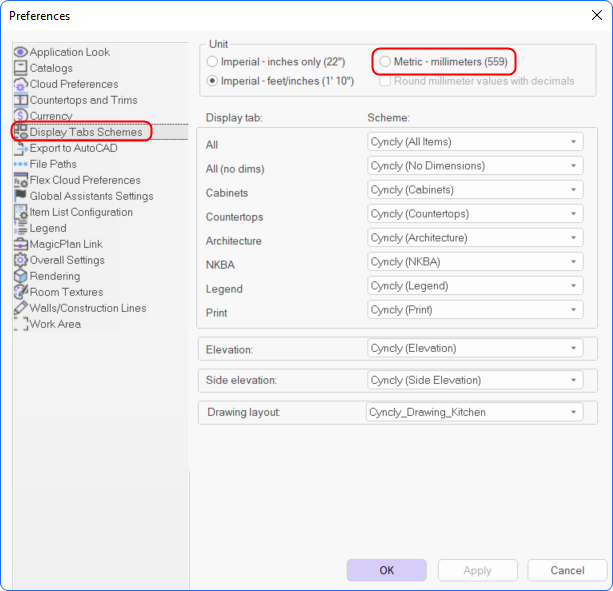

- Next, go to File Preferences and select Display Tab Schemes. Verify that Unit radio button is set to Metric - millimeters (559) as well.
- Close and re-open Design.
