Finding concave and convex walls

Design includes a set of walls with concave and curve shapes. These are available in the "ROOM" catalog under the architectural section.

1. Open Design.


2. Using the drag & drop window, select the ROOM catalog.


3. Under categories, select Architectural Elements.


4. Select Wall \ Ceiling.

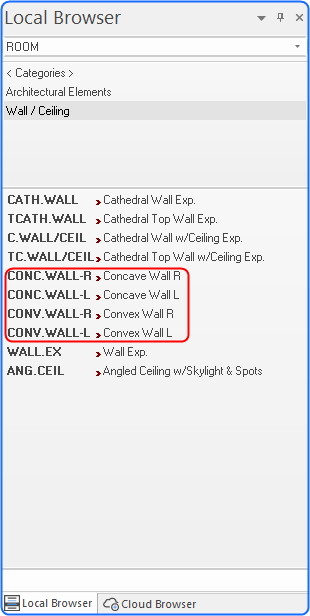

The window will display the following list of available concave and convex walls:



Please note that if the perimeter\radius of the wall needs to be wider in order to maintain the correct shape of the wall, you may need to use a left and right wall.



Once you have placed the wall(s) on the floor plan, follow the same steps as you would do on a regular wall to modify the width, height or depth.

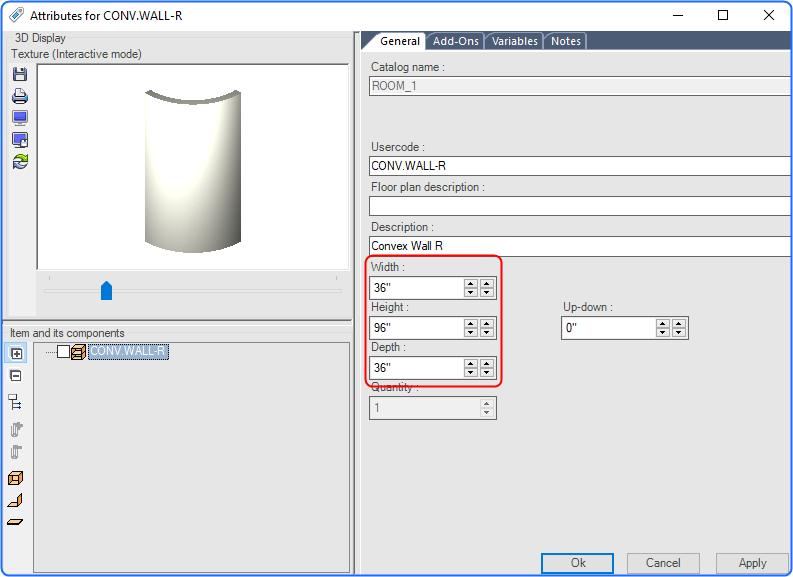

Right-click on the wall and select attributes. Once the changes are done, click on OK.
