The Cloud Configurator allows you to add things such as, finishes and accessories to cabinets that have been added using the Cloud Browser which uses cloud catalogs.

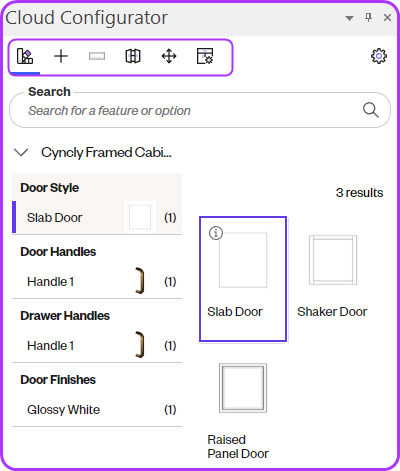

The Cloud Configurator has 6 tabs across the top toolbar. Each tab is enabled if the item that is selected can be modified in that way.
- The icon
is for the styles available for the item you have selected. This is dependent on the catalog and the selected item.
- The icon
is for adding sub-items to the selected item. Things such as internal accessories and cabinet trims. Again this is dependent on the catalog and the selected item.
- The icon
is enabled if the item you have selected can have different dimensions, here you will see the options available to you based on the item and catalog.
- The icon
is enabled if there is a door or drawer on the item you have selected as you can show these in open positions in a render to show internal accessories.
- The icon
is for handle placement, this is enabled if the item selected has a door handle.
- The icon
shows you similar items from the selected catalogs as suggested item alternatives. Select one and the item will be replaced in the plan.
Proposed options

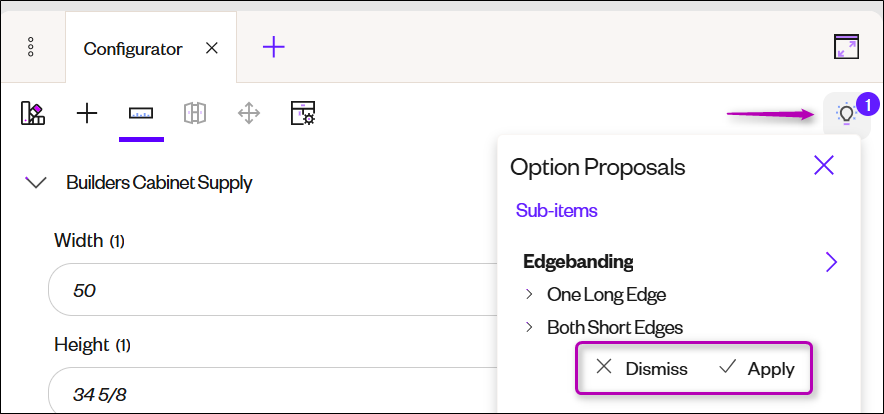

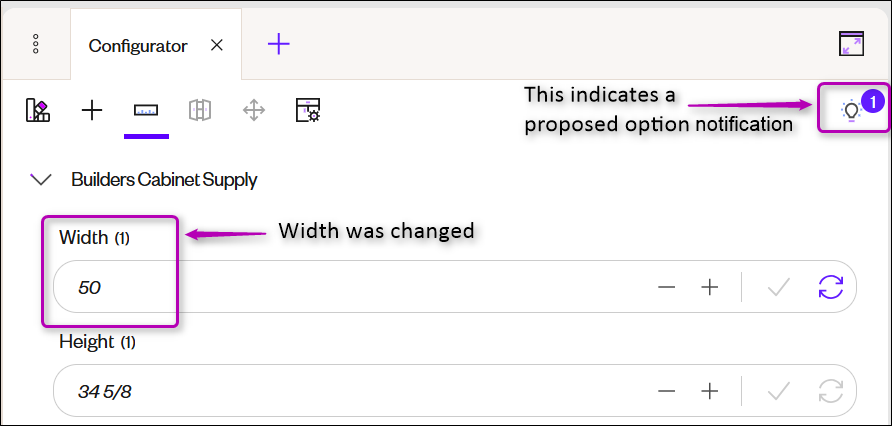

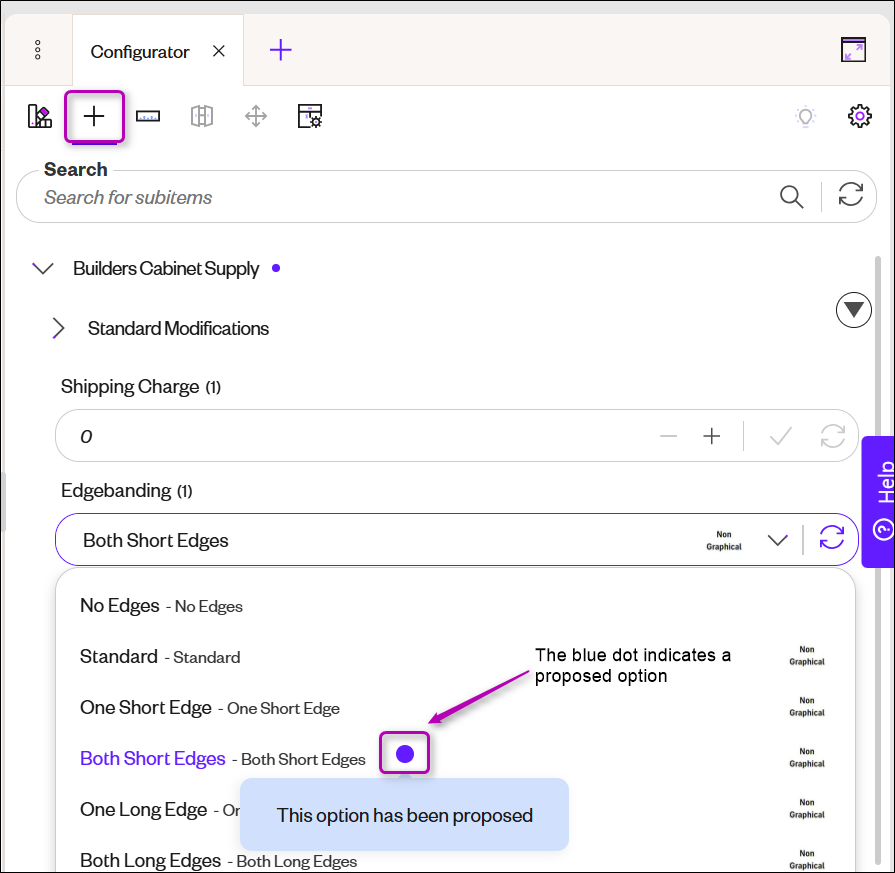

When you modify an item in the Cloud Configurator, the catalog may identify additional options that have become available based on your current selections. If a newly valid option is identified, a notification is displayed. The notification informs you of the proposed option and allows you to decide whether to apply it.
You can:
- Change the selected option to the proposed option.
- Keep the currently selected option.
- Select Don't display the message to stop the notification from appearing.

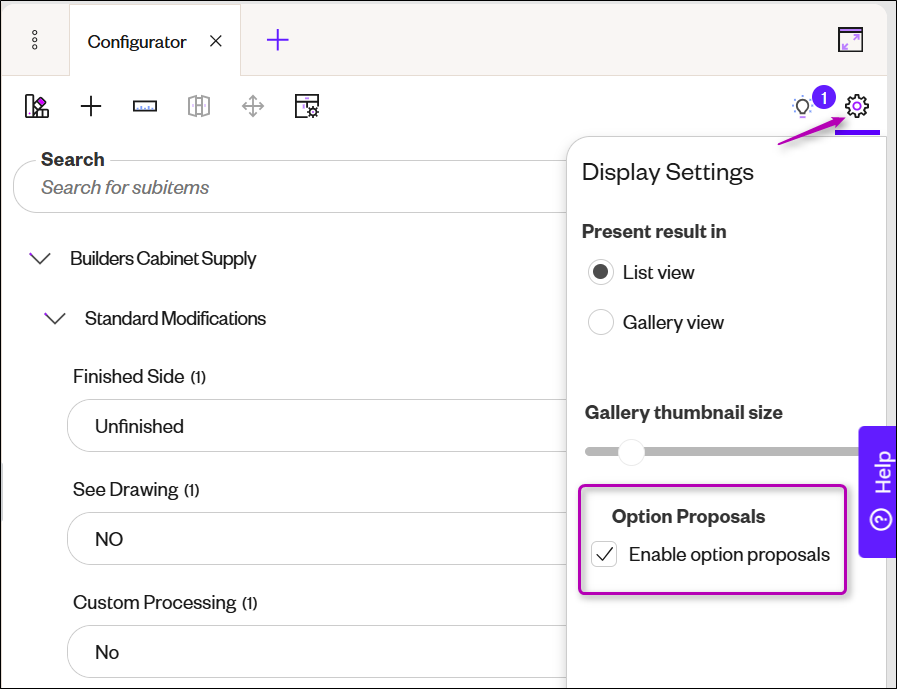

If you previously disabled proposed option notifications, you can re-enable them from the Cloud Configurator settings.
