To adjust the viewing position and angle before launching a Perspective View, click the Show/Hide Camera icon in the Work Area toolbar at the bottom right of the screen:
The Show/Hide Camera icon displays or hides the floor plan camera shape that you can use before generating a Perspective View:
Note: The camera settings you define in the floor plan do not affect the Perspective, however the settings defined with the Saved Viewed in Perspective rendering will affect the floor plan camera configuration.
Camera Operation

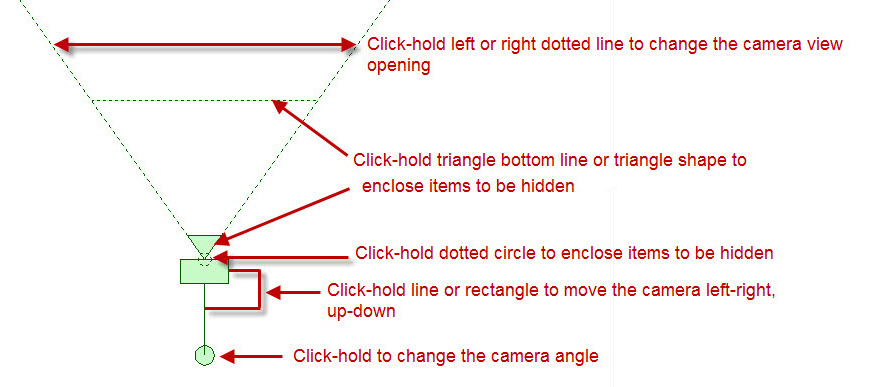

The following screenshot illustrates how to operate the floor plan camera:
Camera Right-Click Commands
The following commands are available when right-clicking on the camera:
Tip
Use a specific Display Tab and name it accordingly to show the camera in floor plan for particular design situation. For more information see article Rename a display tab.
