Performance
-
Use Texture, Color or Sketch in a Low or Medium Quality mode.
-
The fewer lights, the faster the render. We recommend a ceiling light only for best performances.
-
Set the texture quality option to Small, Medium or Large (Preferences dialog box, Rendering Performance).
In the Textures pane, select Small, Medium or Large from the Rendering list. -
Small: 128x128 maximum texture resolution
-
Medium: 256x256 maximum texture resolution
-
Large: 1024x1024 maximum texture resolution.
Performance/quality balance
-
Use Texture in Medium Quality mode.
-
To reduce "staircase" effect, use texture High Quality instead of Texture Medium Quality.
-

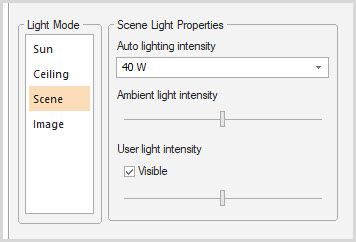

Use Auto light intensity in Redway 3d mode.
Redway 3d mode:
EZ Render mode:
NOTE: If you want to get a more realistic and natural rendering, we suggest that you play with natural light and avoid using the artificial light sliders.
Photoreaslitic Quality
To access the View Mode/Quality window, click the View Mode/Quality button in the Rendering Dashboard.
-
A fast machine with a lot of memory is a MUST.
-
Select High/Best Quality for all settings.
-
Use textures.
EZ Render mode:
Redway 3d mode:
-
In Redway 3d mode, click Global Illumination.
-
In Redway 3d mode, use Refresh rendering on idle. It allows users editing their designs in 3D to refresh without performing an entire re-render. They can manipulate objects in rendering without the time restricted by a full re-render (however necessary in showcasing situtions). Therefore, it speeds up editing time in rendering considerably.
Basically, when the Refresh rendering on idle is checked off, there is:
limited lighting adjustments made
minimum shadow calculation
no change of the view angle
-
Adhere to the following rules:
Ø The room needs to be closed.
Ø Always assign a Floor and Ceiling texture.
Ø Add at least one window to your design (for sunlight effect).
Ø Carefully place sun for the best effect.
Ø Ambient light should not be greater than 1.
Lots of lighting is the secret of a must-see rendering; check this one out!
