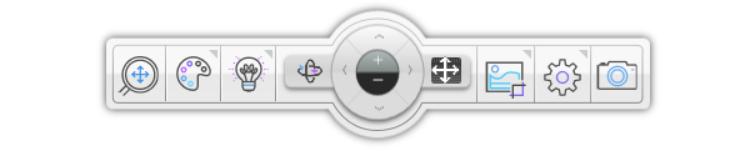

Rendering dashboard

Fit to Window

Adjusts the rendering to the window size when zooming is complete.

Textures/Display Settings

Opens a window where you can assign a texture/color to the floor, ceiling, and background. You can also show or hide the ceiling and floor, and change the display settings of items on the current rendering.

Light Effects

Opens a window where you can add sunlight and assign ceiling and overall room light effects.
See:
Light Effects with Redway 3d rendering engine
Light Effects with EZ Render rendering engine

Orbit

Rotates the rendering up, down, left, or right when used with the Orbit/Pan buttons.

Orbit/Pan left, right, up, down
Zoom in/out

Pans or rotates the rendering up, down, left, or right; the Plus + and Minus - buttons zoom in or out based on the current rendering position.

Pan

Moves the rendering up, down, left, or right when used with the Orbit/Pan buttons.

Clipping

Note: Does not apply for 360 panoramic view publishing.
Opens a window where you can clip parts of the rendering or object and change the camera angle.

View Mode/Quality with Redway 3d.

View mode/Quality with EZ Render.

Note: Does not apply for 360 panoramic view publishing.

See also Rendering Preferences

Note: Does not apply for 360 panoramic view publishing.

In the initial rendering window:
Launches a high quality rendering.

In a High-Quality rendering window:
Re-renders the current rendering window. To see any changes made to your design either in floor plan or in rendering, you must launch another high quality rendering with this camera icon.

You can access each high quality rendering window by clicking the corresponding camera icon in the Windows task bar.
