Bally
  • Updated

To create a CSV file with cabinet part and material information (dimensions, grain, etc.). Small cabinet makers can look up this file quickly when cutting parts.

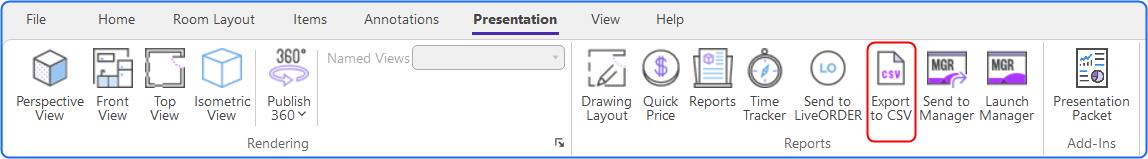

  1. In the PRESENTATION ribbon, select Export to CSV.

    DFx US 20596537843089-1 .png



  2. Choose a location where to save the CSV file (the default is C:\ProgramData\2020 Technologies\2020Reports\ExportToCSV\Export).

  3. Add a check mark to Unit of measure symbol to add this symbol to the CSV file, change the default Unit of measure for dimensions and choose a Round factor.

  4. Click Export.

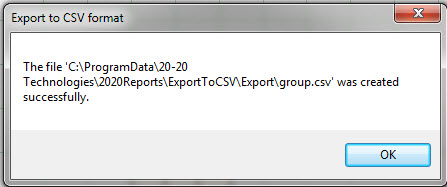

  5. Click OK at this message and then open the CSV file from the folder you saved it in. If Microsoft Excel is installed on your computer, double-clicking the file will open it in this program.
