Complete the following steps to import an AutoCAD 3D file:
In the FILE menu, click Import, From local storage.
Notice: Imported AutoCAD Files Compatible with Design are Supported up to Release R27 (2013)
In the Import dialog box, select the file type AutoCAD Drawing (*.dwg), select the file, and then click Open.

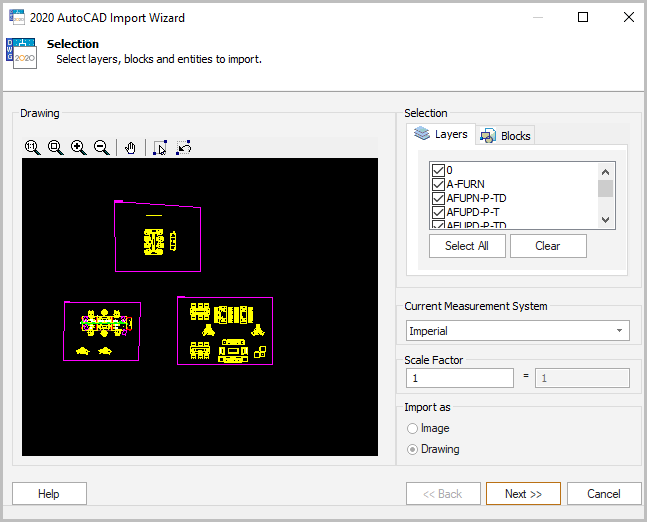

In the Import Wizard dialog box, add or remove any layer, filter, select the type of dimensions and then click OK.
Click the floor plan to position the file.
To retrieve the item, make sure to save the current .kit file or save the item to an idea library using the Local Browser.
