The 360 icon provides you and your client with an immersive 3D experience that makes you feel like you are inside your new home space. All you need to do is move within the current 360 home space and save the views you want to publish.
-
Open the drawing from which you want to publish the 360 panoramic view renderings.
-
In the PRESENTATION ribbon, click Publish 360
-
The 360 Panoramic Views dialog box appears. Click Add to open the current 360 panoramic view rendering browser.
- Move inside the 3D panoramic rendering and set the viewpoint you'd like to publish. Adjust the rendering with the Rendering Dashboard tools if required.
- In the Save View field located at the bottom right of your rendering, type a name, and press ENTER, or click Save view.
Note: Repeat steps 4 and 5 to continue adding 360 viewpoints.
- Go back to the 360 Panoramic View dialog box to see the viewpoint(s) you've just created.
TIP: This dialog box stays open so that you can move in and out of this window when you apply renderings in the rendering browser.

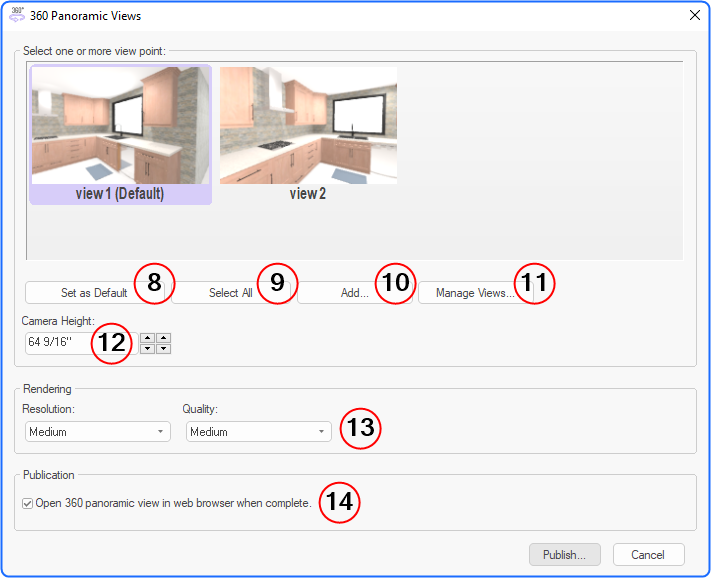

- The 360 Panoramic View window appears, showing you a series of saved viewpoints to incorporate within your publish scene.
-
Set as Default. To set a view point to be the default for the published scene, click on the desired view point and click the Set as Default button.
For a multiple selection, press the CTRL or SHIFT key while selecting the view points.
-
Select All. Click Select All to select all the view points.
-
Add. Click this button to add new viewpoints to the thumbnail section of this dialog box.
-
To rename viewpoint, click the Manage Views button and follow the steps below:
a) Highlight the saved view you want to rename and click Rename.
b) Type a new name in the Enter a name field.
c) Click OK to close the Save/Rename View Settings dialog box.
d) Click Close to close the View Utilities dialog box.
-
Camera Height. You can change the Height of the camera within the rendering. The default height is set to 5' 5''. To generate a proper panoramic view, the camera needs to be leveled horizontally and centered in the room. If a warning is displayed, Auto-center camera. Disregard Enable Clipping.
-
Resolution and Quality. It is not necessary to generate a high-quality render before generating the view.
- To display the view in your web browser before sending it to your clients, make sure the check box labeled Open 360 panoramic view in web browser when complete is enabled.
- Click Publish.
- Complete the Designer Information dialog box, ensuring to fill in the four fields starred in red as a minimum.
- Click Send and the Please wait window will appear on the screen.
- Go to Retrieve the online view on your mobile device or a JPG when offline.
