How to center items

• You can center an item in relation to the wall/construction line it is attached to.


• Center an item in relation to other items on the same wall/construction line.


• Center a freestanding item (a cabinet on the floor area, for example).

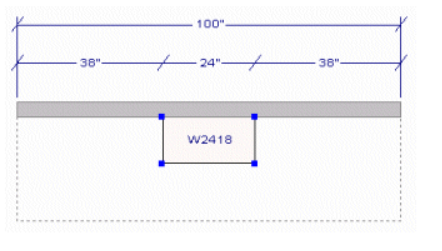

Center an item in relation to a wall:

1. In the Floor Plan or Elevation area, select the item.



2. In the HOME Ribbon click the Center button.
   Alternatively, you can select the item, right-click, and select Center from the pop-up menu.



3. Press the ENTER key.

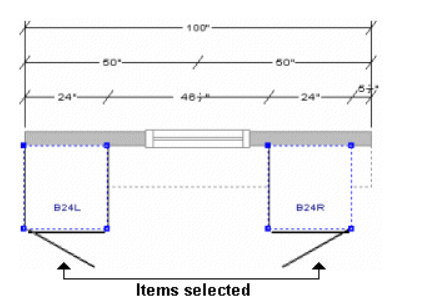

Center an item in relation other items on the same wall/construction line

1. In the Floor Plan or Elevation area, select the item.



2. In the HOME ribbon, click the Center button.
   Alternatively, you can select the item, right-click, and choose Center from the pop-up menu.



3. Select the item(s) to center from.



      4. Press the ENTER key.




Center a freestanding item

Complete the following steps to center an item located on the floor area:

1. In the Floor Plan or Elevation area, select the item.



2. In the HOME ribbon, click the Center button.
   Alternatively, you can select the freestanding item, right-click, and select Center from the pop-up menu.



3. Select the items(s) (wall or other items) to center from.


4. Press the ENTER key.
