The following topics explain the main Design tool that helps you select and place items.

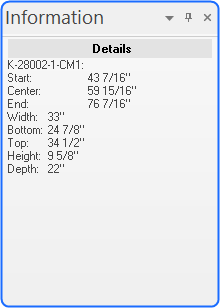

To display the information box, make sure the Information button is selected in the VIEW ribbon.
You can use the information box for the following purposes:
- Display information on any selected item in the work area by pausing the pointer on the item for a few seconds or by clicking on it.
- Display a 3D image of the item selected in the drag & drop list. Press and hold the mouse button over the image and rotate the image in any direction.

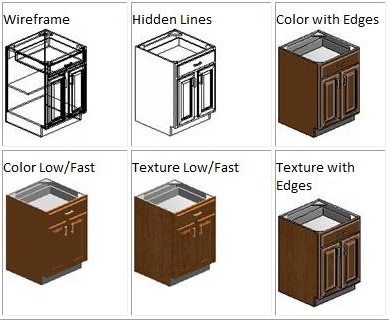

You can also change the view mode of the item selected in the drag & drop list. To do so, right-click the image to toggle between the view modes.
Note: The display may take several seconds to generate once selected.
- When you are performing a task, display information on the next step to take.
To dock the information box to any side of the screen or leave it floating, see How to dock or undock dockable components.
