Warning patterns alert you about invalid design patterns.

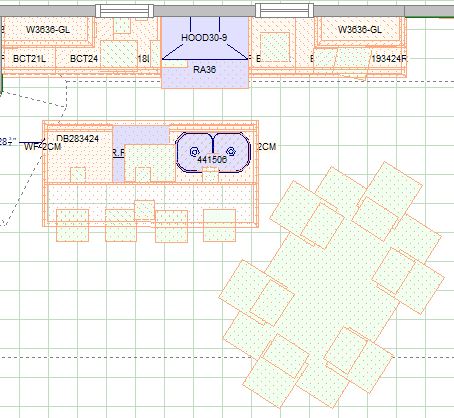

- Colliding Items Pattern alerts you when items collide in your design.
Note: When the cursor moves over the collided items, a pop-up displays them on the lower right corner
- Rules Advisory Pattern alerts you when design conflicts are encountered according to the Assistants.
Note: The design assistants are rule-driven tools that can notify you when your designs are not compliant with the design conventions established by the industry.

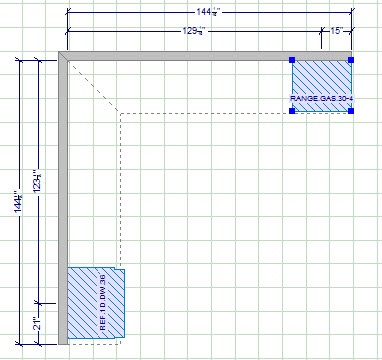

The following figure provides an example of items that do not conform to the design rules according to the Assistants.

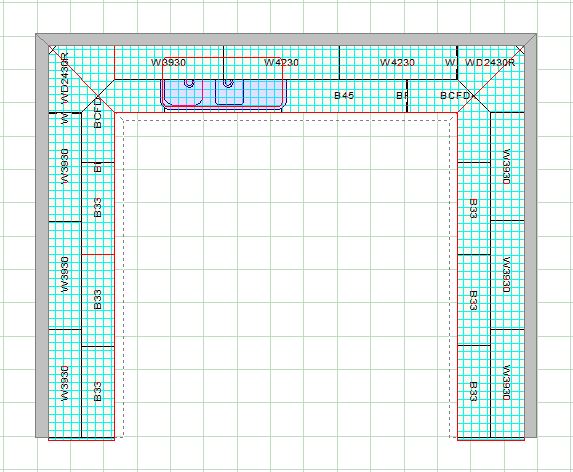

- Invalid Sections Pattern alerts you when countertop or trim sections have invalid dimensions or are missing cuts.
- Invalid Items Pattern alerts you when items on your design are no longer available or need to be switched.

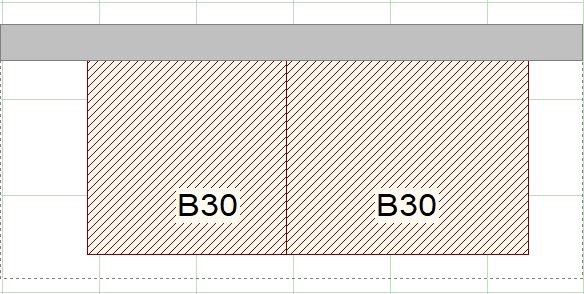

The following figure provides an example of items that need to be switched because they are obsolete.
To remove warning patterns as you design, point away from any item, right-click, and select Display Settings from the menu.
Select the Warning Patterns tab, clear the check box on each pattern.
To change the color of a particular warning pattern, click the color of the warning pattern and choose the new color.
