Editable wall and floor tiles are available and can be found in the ROOM catalog under the section Tiles: Via the Drag & Drop list, select the ROOM catalog and double click on Tiles.

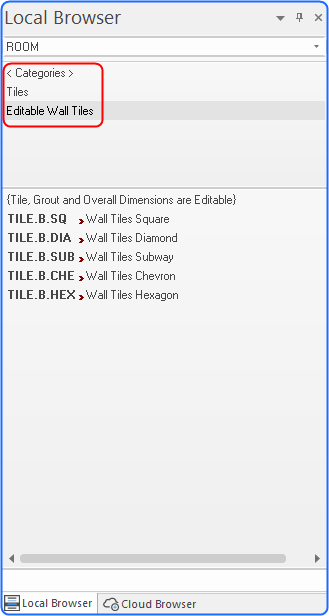

For Editable Wall Tiles, double click on this category.

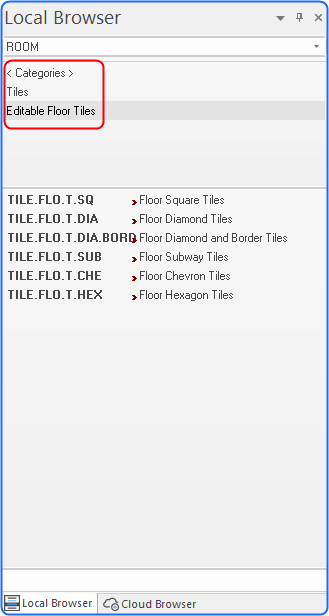

For Editable Floor Tiles, double click on this category.

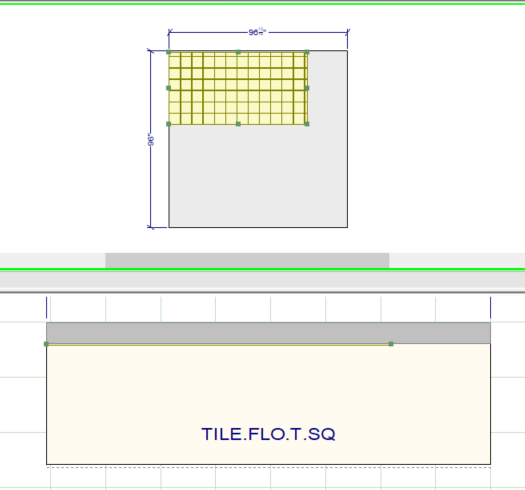

The tiles can be placed through the floor plan or in the elevation window.
We suggest to use the elevation window since this provides a better view while performing changes.
To place the tile:
- Left click on the tile and holding the mouse drag the tile until you touch the wall\floor. Left click on the area to place it.
- Once the Attributes window appears, select the tile color and perform the changes on height and width if needed. Click apply, then click OK.
- You will be back to the floor plan\elevation. Move the mouse left or right or up or down to extend the tile and cover the desired area.
Tip
Right clicking on the mouse while placing the tile will allow you to move the position of the tile up\down or left\right.
Once you have placed the tile, the green dots will still allow you to quickly extend it to the left\right or up\down.
