Change the door model for all cabinets

Follow these steps to change the door style for all base, wall and tall cabinets on your design:

1. Click the ITEMS tab.



2. Click the Styles & Pricing button.



3. In the Styles & Pricing dialog box, select the Catalog Styles tab.



4. On the left pane, select a manufacturer catalog.

   Under Value, double-click in the field to the right of Base, Wall or Tall Door Upcharge or select a value and click the Add button. The Global Style Validation appears.

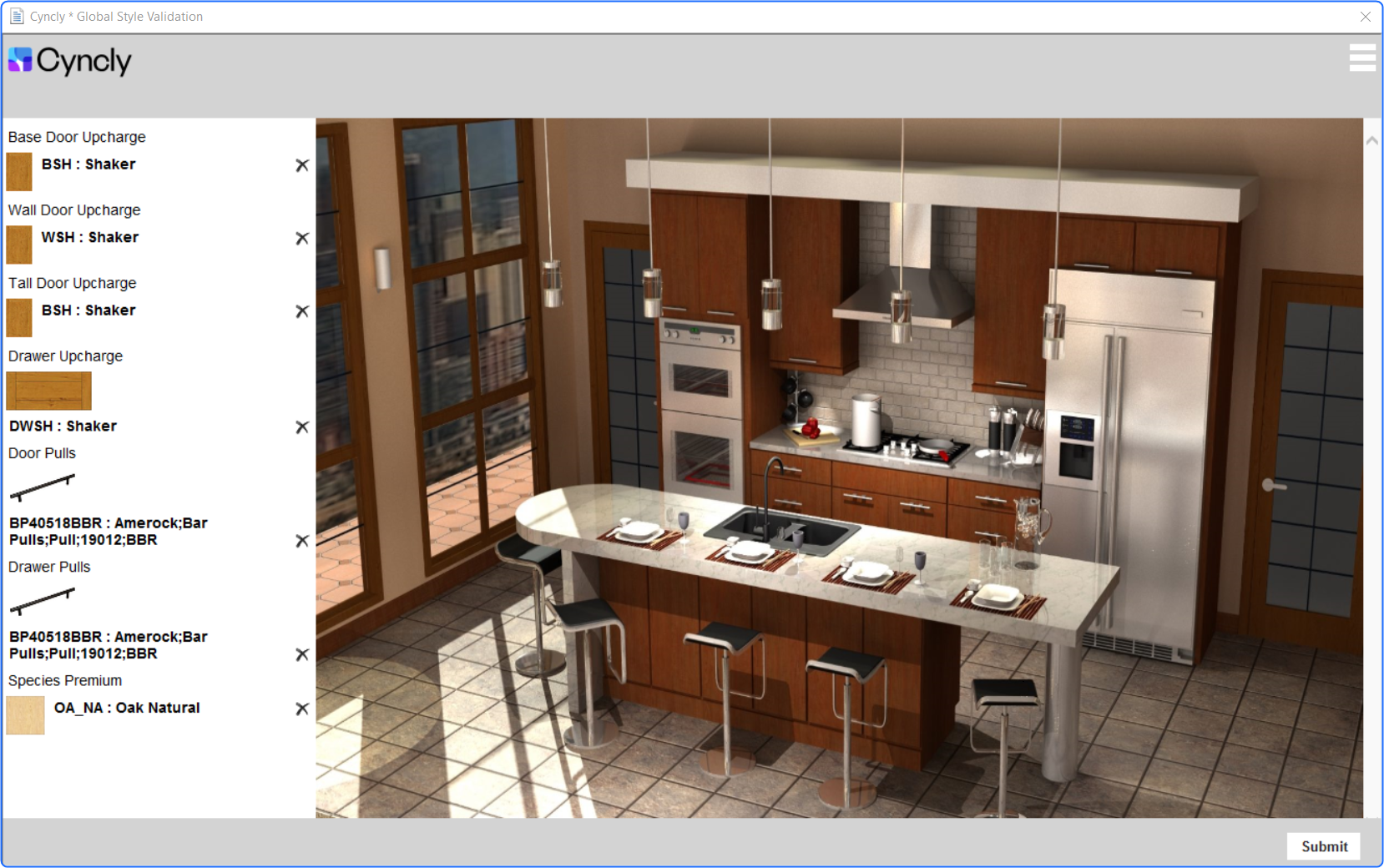

5. In the Global Style Validation window, click the required door upcharge category from the left pane.





6.  In the middle pane, select the door model image.



7. Click Submit when done.



8. Click Close to close the Styles and Pricing dialog box.



9.  Launch a rendering to verify the new style or refresh the current rendering window.



Parameters menu of the Global Style Validation window

Complete the following steps to show excluded option, clear the current selections, print the current selections and close the parameters menu.

1. Click the three lines displayed in the upper right-hand corner of the Global Style Validation window.



2. Select the required option.


   Show Excluded Options:  This option applies to Global Style Validation catalogs that incorporate selective restrictions (does not apply to the generic 2020 Sample catalogs: Sample_E, Sample_F and Sample_M ).

   Clear Selection: Clears the current selections

   Toggle Display: Feature under development

   Print: Prints the current selections

   Close: Closes the parameters menu
