Select Custom in the bottom right of the Lighting Wizard dialog box.
Custom allows you to choose:
-
where you want lights (Over/Under Wall Cabinets, Inside Wall Glass Door Cabinets and in Toe Kick area)
-
type of lighting for each area (puck or strip lighting)
-
specific lighting model (may include color + wattage + other)
-

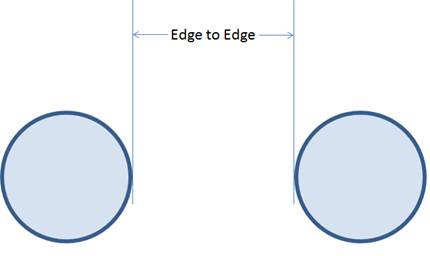

spacing between lights when applicable. Spacing is calculated edge to edge for puck lights
-
dimmable or not when applicable
The custom configuration is saved with your kit file and will display the next time you access the Lighting Wizard.
See Automatic Placement of Lights for examples of lights added in rendering mode.
Follow these steps to custom-place lights:
-

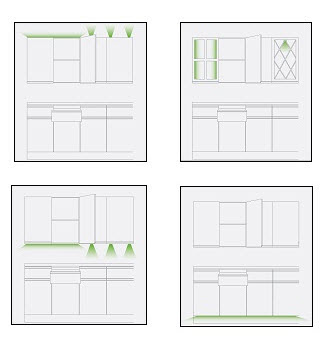

In the Custom section of the Lighting Wizard, identify the area(s) of your design you want to add lights by using the images displayed in the right pane.
-
Click an area in the left pane and then select the option fields to choose Lighting Type, the specific Product, the Spacing range you want between Puck Lights and whether lights are Dimmable.
-
Click OK to launch the Wizard.
-
Launch an Isometric View or a Perspective View or click the Rendering Module title bar if already open.
