The Crosshair indicator allows users to measure the distance more precisely between the center of the selected lighting fixtures of your floor plan.
-
Place the required fixtures in floor plan of your design. The design in the following figure was created using recessed lights.
NOTE: Zoom in to enlarge the recessed lights. -
In the ANNOTATIONS ribbon, click Multi dimensions
or Line to Line
button.
-
To set the starting reference line of the dimensions, hover the mouse pointer over the vertical line located in the center of the crosshair. This line is highlighted in green to indicate that it can be selected.
-
When the line is green, click to select it, blue handles now appear on the selected line.
Tip: To deselect a line, point to the line and click. -
Move the mouse pointer to another line and click to select it.
-
Repeat step 4 to continue selecting lines.
Note: To interrupt the current process, press the ESC key. -
Press Enter to end your selection of lines.
-
To fix the line and finish the process, move this line to the required position and click.

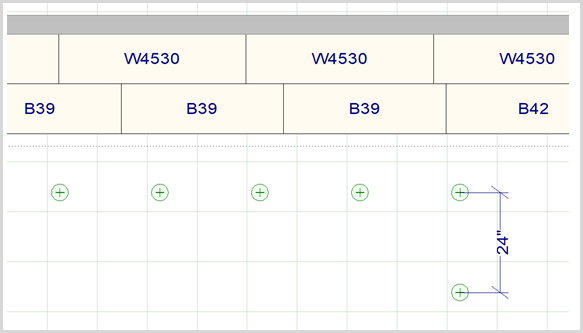

The result obtained by the steps above is illustrated in figure 1.
Figure 1

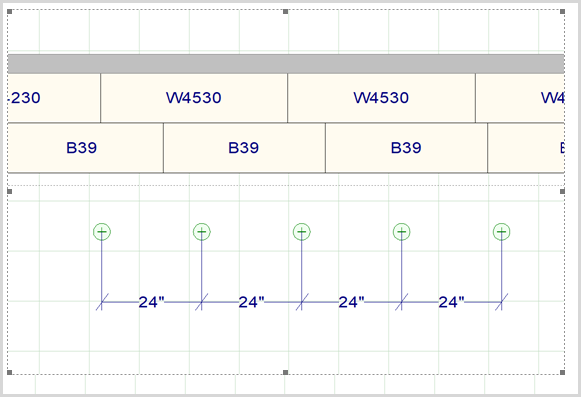

In the Figure 2, the design was created using horizontal et vertical lines.
Figure 2
