Complete the following steps to measure the dimension between two points:
-
In the ANNOTATIONS ribbon, click Horizontal
to measure a horizontal dimension, Vertical
to measure a vertical dimension, or Aligned
to measure an aligned dimension.
-
In the Floor Plan, select the starting point of the dimension.
-
Select the end point to obtain the dimension.

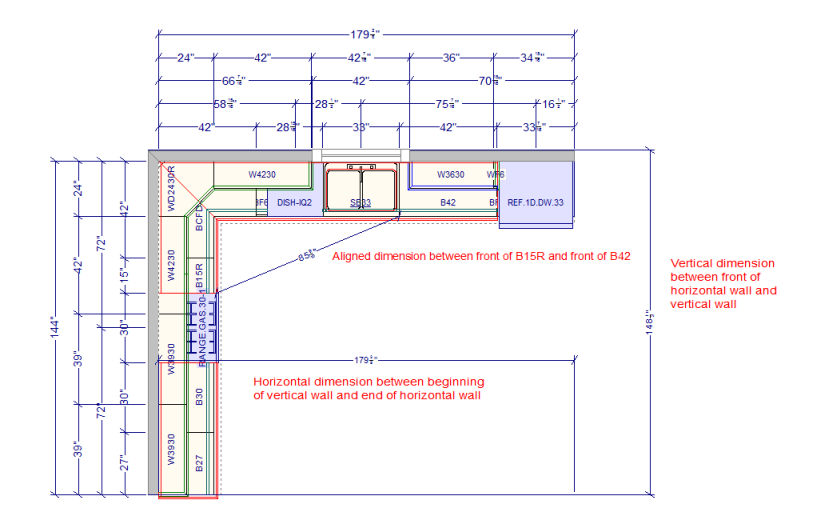

The following figure provides examples of point-to-point dimensions.
