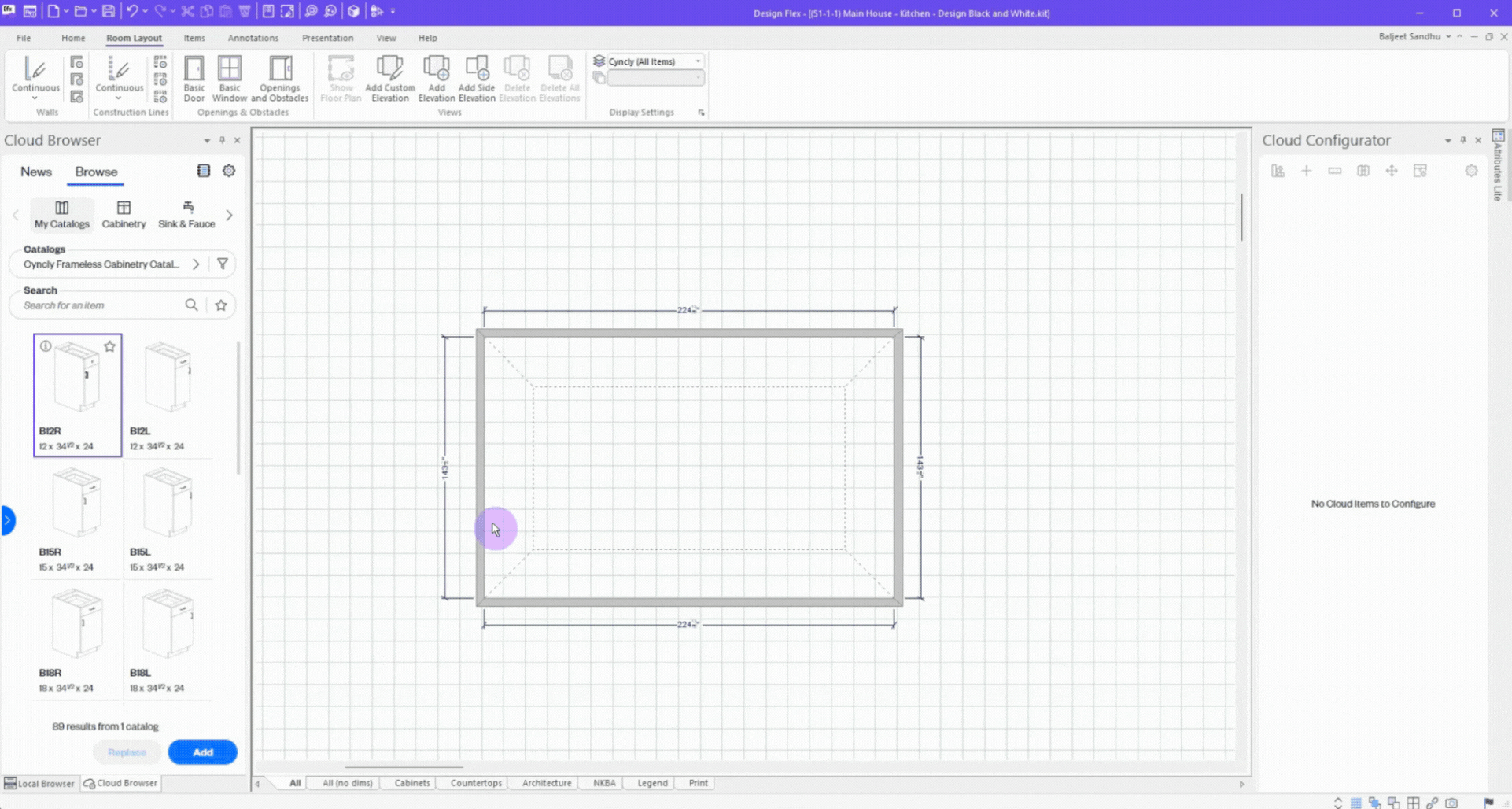

To pull a blind cabinet from the corner where it is located, in the Floor Plan, select the blind cabinet, right-click, and select Pull from the pop-up menu. Pull the cabinet away from the corner and click to set the new location.
Alternatively, you can type the required value in the Pull field of the Placement box and then press ENTER.
Note: The maximum distance that you can pull a blind cabinet depends on the maximum value assigned by the manufacturer in the catalog you are working with. To verify or change this value, point to the blind cabinet, right-click, and choose Attributes. In the Variables tab of the Attributes dialog box, select the Dimensions pane. Change the value of the Max cabinet pull width variable.
If the cabinet is a cloud item you can also see this information in the Configurator under the Design drop-down in the + category.
