The Running line command allows you to draw adjacent connected lines using points that you specify.
Complete the following steps to apply the Running line command:
-
In the Annotations toolbar, click Running Line
-
In the Floor Plan or Elevation area, click to start drawing the running line.
-
Move the pointer to draw the first section of the line. You can also use the Placement box to enter the line coordinates. If your line is more horizontal than vertical, an X-axis guides you as you draw. If your line is more vertical than horizontal, a Y-axis guides you as you draw.
-
Click to confirm the first section of the running line and continue drawing.
-
Right-click to end drawing the line.

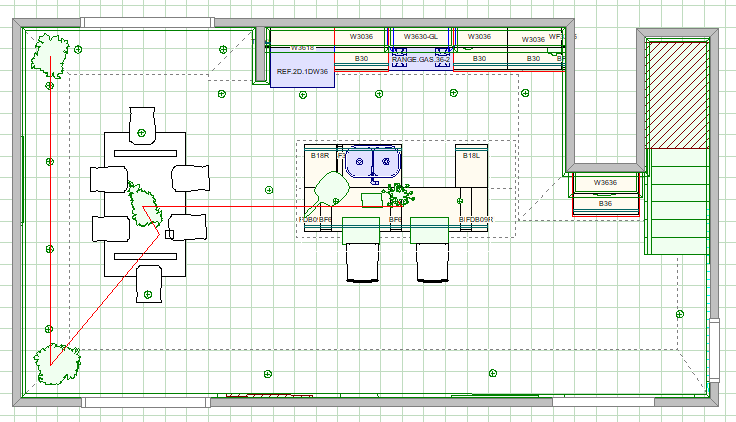

The following figure provides an example of a running line used to identify items taken from the same catalog.
For instructions on editing a running line or converting it to a 3D shape, see Edit a line.
