Applies to:
2020 Design version 12.2 and higher

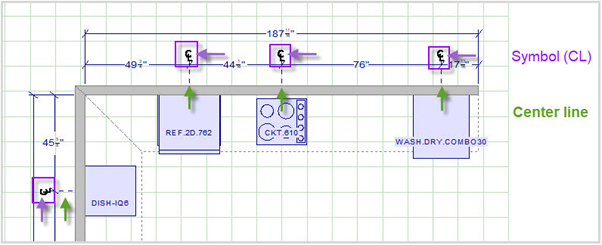

- Automatic center lines of items have a specific line type and an associated center line symbol (see screen capture above).

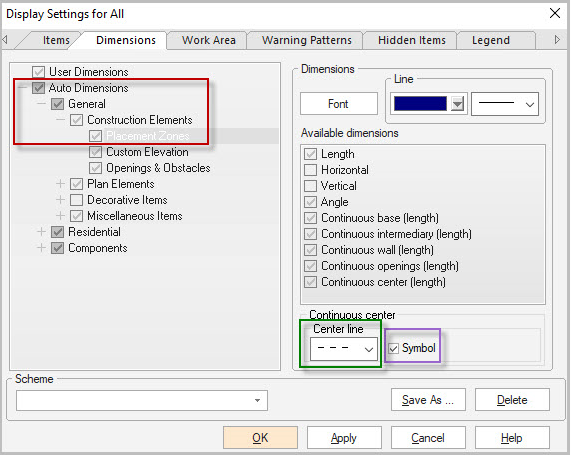

- The center lines can be further configured through the Dimension tab of the Display Settings dialog box (accessed by double clicking in the floor plan).
- The Continuous center section located in the Display Settings dialog box allows you to choose the style of center lines using the drop-down list. You can show the center line of items placed along the walls with the center line symbol (CL) when the Symbol checkbox is selected.
