Applies to:
Design V13* and V14*
- You can save display settings as schemes and make them accessible for other designs.
- You can also have more than one scheme per design. For example, you might not want to display all dimensions on the floor plan, or you might want to assign a specific color to appliances to make them easily identifiable on the elevation.
-
You can also set display settings for a specific item such as a cabinet, wall group, note, or shape.
Complete the following steps to copy your schemes to Design version 14:
1. Open a Windows file explorer and browse the Config folder for the earlier version:
C:\ProgramData\2020\Design\13\Config
2. Select all your own schemes and copy them.
3. Open another Windows file explorer and browse the Config folder (Version 14):
3. Open another Windows file explorer and browse the Config folder (Version 14):
C:\ProgramData\Cyncly\Design\14\Config
4. Paste the copied Schemes there.
5. Open Design and open the Preferences under the FILE tab.

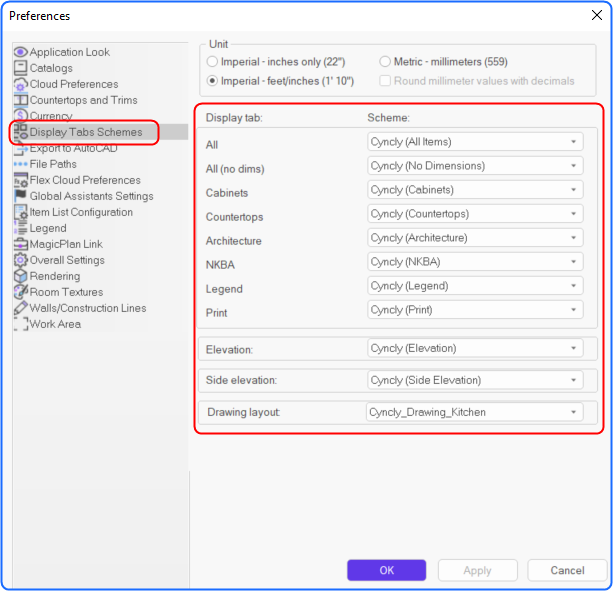

6. Select Display Tabs Schemes and choose your Schemes.
5. Open Design and open the Preferences under the FILE tab.
6. Select Display Tabs Schemes and choose your Schemes.
7. Click OK and open a new design.
