Display or hide the floor plan grid
- To access the Display settings dialog box, double click on the floorplan.
- Select the Work Area tab.
- Under the Grid settings, select Display grid.

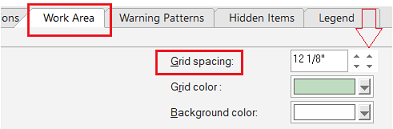

Change the grid spacing
- Open the Display Settings dialog box and select the Work Area tab.
- Select Display Grid, then type the new measure in the Grid spacing field.
You can also use the arrows on the left for integers and the arrows on the right for fractional values.

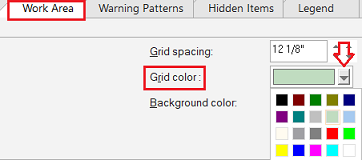

Change the color of the grid lines
- Open the Display Settings dialog box and select the Work Area tab.
- Select Display Grid, then click the Grid Color drop-down arrow and choose the color. To use a color not shown, click Other to open the Colors dialog box.

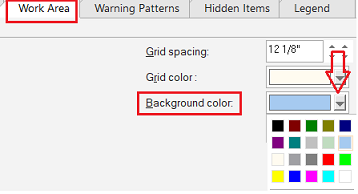

Change the background color of the floor plan
- Open the Display Settings dialog box and select the Work Area tab.
- Click the Background color drop-down arrow and choose the color. To use another color, click Other to open the Color dialog box.
Setting the new scheme as default
If you wish to set the new grid setting as the new default scheme for all your plans:
Click Save as and give it a name then click Save. Once done, close the Display Settings window.

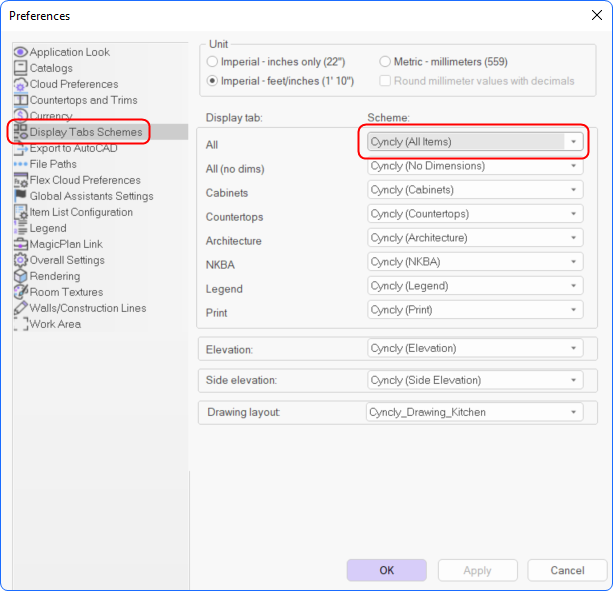

Click on the File tab, click on Preferences and select Display Tab Schemes.
Under the Display tab section, click on the Scheme drop down menu and look for the new scheme.
Once selected, click on Apply then click on OK.
The new scheme will now be applied to all your new designs.
