Display cabinets in 3D in the elevation

Jakob Blomstrand
  • Updated
  1. Open an existing design file or create a new design.

  2. Click in a placement zone to highlight it.

  3. Right-click on the floorplan and click Add Elevation Area.

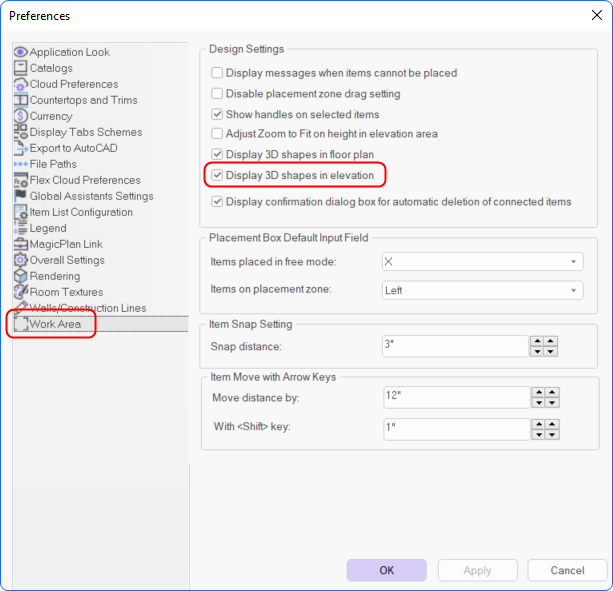

  4. Click File  Preferences  Work Area.

  5. In the Display Settings section, check the box Display 3D shapes in elevation, click Apply and OK.

    DFx US 19806302399249-2 .png

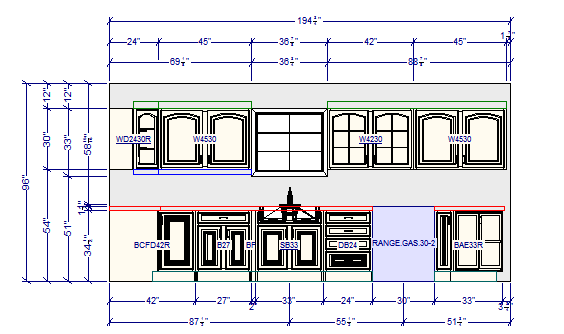

  6. The elevation will display cabinets in 3D.

    User-added image
