How to place and edit a panel in the Closet add-on

You can place and edit a panel in the Closet add-on with Design.

To place a Panel Run in a design, use the wall layout that you created in the previous module.


1. If you had closed the "Closet" dialog, click the Closets icon


2. Click on the Quick Search area and type P.


3. Double-click on

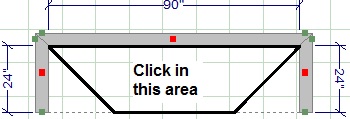

4. Click in the placement zone of the 90" wall.




5. When this dialog appears, click the drop-down arrow beside Number of sections, choose 4 sections and click OK.


6. Move your mouse to the left and click when the Wall left field shows 0" in the Placement box.


7. Move your mouse to the right and click when the Width field shows 90" in the Placement box.


8. Move your mouse downward and click when the Depth field shows 14" in the Placement box.
   Note: You can also type 14 and press ENTER, however, do not move your mouse while typing in values.
9. When the Closet dialog reappears, close it.

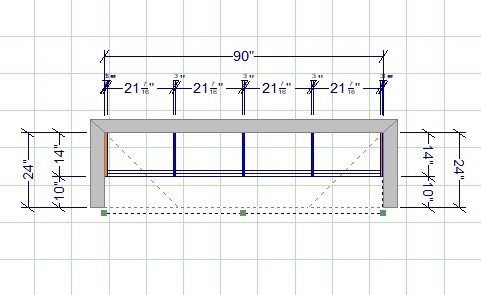

Design automatically calculates and separates the four sections equally and adds the proper quantity of panels, top, and bottom shelves accordingly.

Edit the Sections of the Panel Section (PNLS)

1. Right-click on the PNLS on the floorplan and choose Attributes.


2. Click the Variables tab.


3. Click on Section 1, change Section Height 1 to 47 and click Apply.


4. When an error message appears, click OK.
   Note: Design automatically sets the nearest valid dimension.


5. Change Section Type 1 to Wall Mounted.
   Note: When you choose Wall Mounted, Design automatically removes toe kicks and changes the bottom clearance (36 9/16")


6. Click on Section 4, change Section Height 4 to 47.


7. Change Section Type 4 to Wall Mounted and click OK.

Resize PNLS

1. Click in the placement zone of the PNLS on the floorplan.


2. Click and hold the mouse button on the following green handle.

3. Move the mouse to the right to stretch the PNLS to 93'', then release the mouse button when the Placement Box shows 93'' in the Width field.
   Note: Design automatically readjusts sections and parts accordingly.


Change the Section Depth of a PNLS

1. Right-click on the PNLS on the floorplan and choose Attributes.


2. Click the Variables tab.


3. Click on Section 2, change Section Depth 2 to 18.


4. Click on Section 3, change Section Depth 3 to 18 and click OK.
