All the following choices are actioned within the windows dialog box to access this:

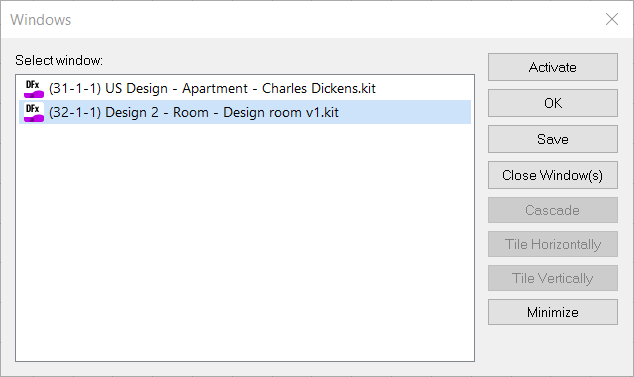

In the VIEW ribbon, click Switch Windows . The Windows dialog box opens:
Switch between Windows
To manage two or more open designs/windows, in the Windows dialog box select the window you wish to change to and click Activate and click OK.

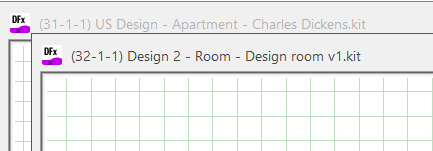

Cascade selected windows
This function will display windows vertically with a slight offset.
- Select the files you want to cascade, by holding down the CTRL key and clicking the files.
- Click the Cascade button and click OK.
Tile selected windows horizontally
This function will display all selected windows evenly across the width of the work area.
- Select the files by holding down the CTRL key and clicking the files.
- Click the Tile Horizontally button and click OK.
Tile selected windows vertically
This function will display all selected windows evenly across the height of the work area.
- Select the files by holding down the CTRL key and clicking the files.
- Click the Tile Vertically button and click OK.
Minimize selected windows
This function will minimize windows as icons in the bottom-left of the work area.
- Select the files you want minimized, by holding down the CTRL key and clicking the files.
- Click the Minimize button and click OK.
Close selected windows
This function will close one or more windows
- In the Windows dialog box, hold the CRTL key while selecting the design files you wish to close.
- Click the Close Window(s) button.
