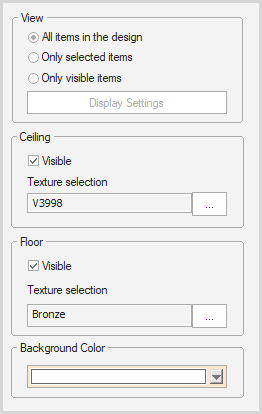

To edit texture and display settings, click the Texture/Display Settings button in the rendering dashboard, which appears at the foot of the screen when you open a rendering.
View
To render all objects in the current design whether they are shown or not on the floor plan view (some may be hidden by the Display Settings in floor plan), select All items in the design (default).
Select Only selected items to render only the items selected in the floor plan view. This option is grayed out if no item is selected.
Choose Only visible items to render only the items shown on the floor plan (other items may be part of the design, but they are hidden by the Display Settings in floor plan).

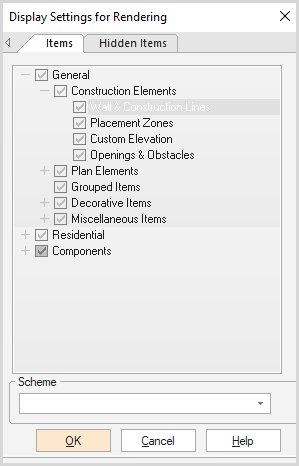

If you select Only visible items, the Display Settings button is available to help you further control the way the selected items are displayed in rendering mode. You can then check/uncheck groups and change the Scheme as in floor plan. The display settings schemes available are the ones used with the current design, not those saved on disk, for a choice of 8 maximum (8 display tabs).
Ceiling and Floor
To show or hide the Floor or the Ceiling, check or uncheck the corresponding box in front of Visible.

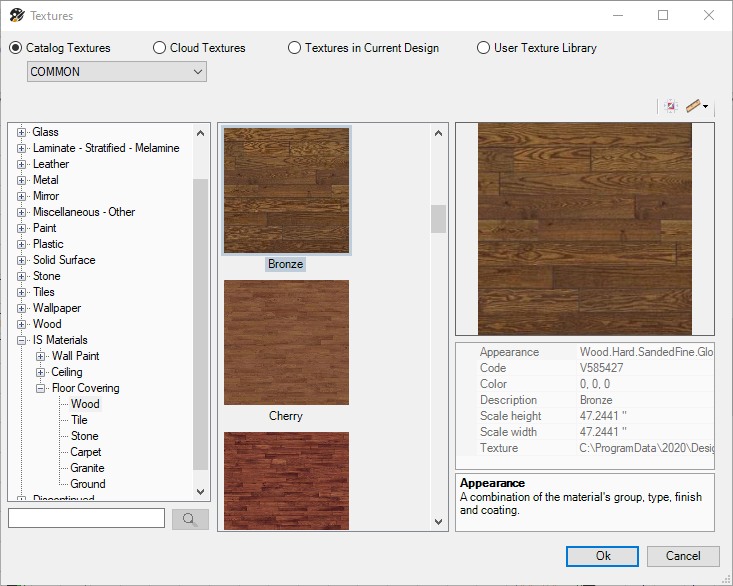

Click the browse button for Texture Selection to load the Textures dialog box.
Background Color
Click the drop-down arrow to select a color for the rendering background.
