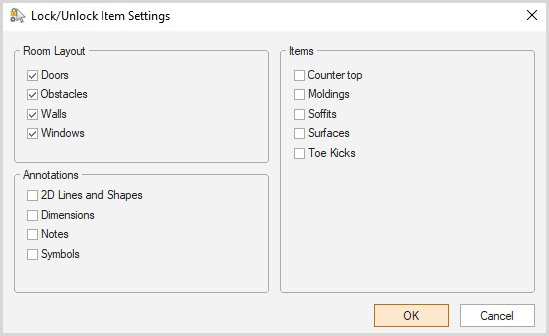

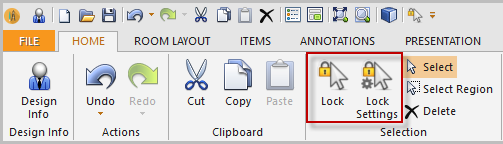

Prevent items from being accidentally moved on a floor plan
Note: The user-defined settings apply only to the current project (applicable per kit file).
Mirror a floor plan for 2020 Cloud products
You can now flip a floor plan with items placed from the Cloud browser.Flipping a floor plan can be useful when creating different designs for face-to-face apartments, rooms, or interior space that must have the same dimensions.

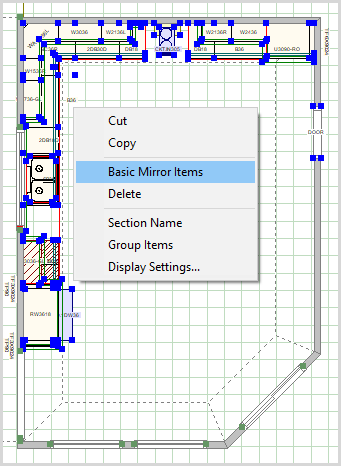

The word Basic in the Basic Mirror Items entry menu means that the current design contains items from both Local browser and Cloud browser. This also means that some Cloud items might not be mirrored properly (for example not reflecting hinging) and will therefore be copied unchanged into the flipped design.

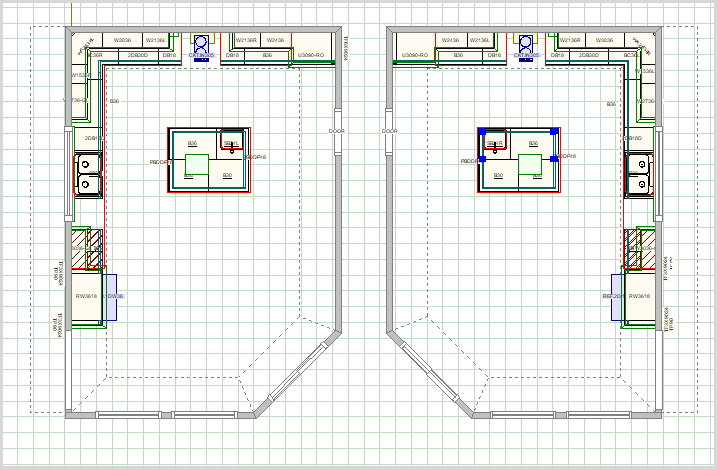

The figure below shows an example of a floor plan mirrored vertically. Here, the user has chosen to keep both designs : the original (left side) and the mirrored design (right side).
Increase or decrease the brightness of the sun with an intensity slider
You can now adjust the natural light effect coming through doors and windows of your renderings with the new sunlight intensity slider.

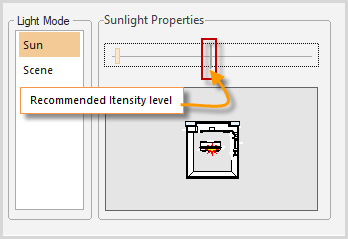

The long vertical bar displayed in the Sunlight Properties window (see picture below) is the recommended intensity level. If you don't want to set the intensity to the suggested level, you can move the slider to the right or left to gradually increase or decrease the sunlight intensity.
Rendering Preferences
