The new door and window wizard provides designers the flexibility to create custom doors and window frame/glass combinations. The wizard is available in the generic Design ROOM catalog that can be accessed with the Openings & Obstacles icon or with the Local Browser list.
To configure a window before placing it, follow these steps:
-
In the ROOM LAYOUT ribbon, click Openings and Obstacles.
-

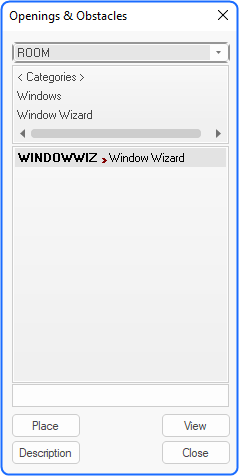

In the Openings & Obstacles dialog box, double-click Windows.
-
Double-click Window Wizard.
-
Double-click WINDOWWIZ.
or click the Place button. -
Click in the placement zone of the wall where the window will be placed.
-

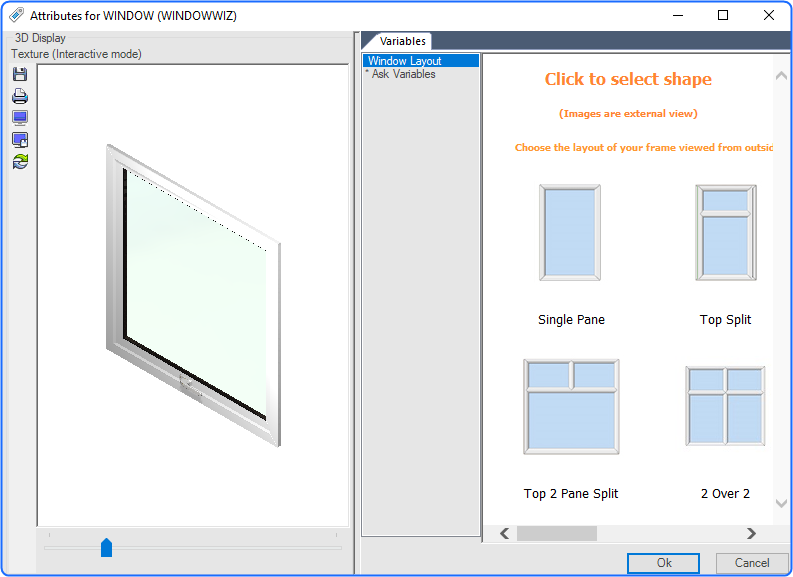

When the Attributes for DOOR dialog box opens, assign the door variables as they are presented, then click OK to place the door.
