To... |
Do the following... |
|
Change the dimension line color |
In the Dimensions tab, click the Color arrow and choose the new color. |
|
Change the dimensions font type, style, size, effect, and color |
In the Dimensions tab, click the Font button. |
|
Show/hide dimensions |
In the Dimensions tab, select or clear the dimension check boxes. |
|
Retrieve the previous dimensions of this item |

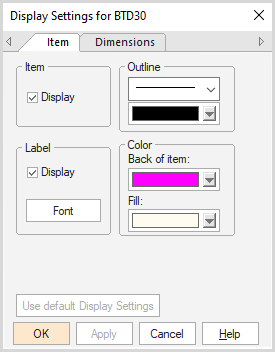

In the Item tab, click Use default Display Settings. |
|
Display/hide the item or the item's label and change its settings |
Use the Item tab. |
Several possibilities exist for dimensions in Floor Plan or Elevation view, depending on the type of item you are editing. For example, when an item is attached to a wall, the following dimensions (and others) are available in Floor Plan view:
-
Left and Right: the dimension to the left and to the right of the item on the wall.
-
In/Out: the dimension between the wall and the item if you pulled the item away from the wall.
The following dimensions are available in Elevation view:
-
Left and Right: the distance to the left and to the right of the item on the wall.
-
Distance top and Distance bottom: the distance above and below the item.
