The Mirror Items command allows you to create a mirror layout of a group of walls/construction lines. This can be useful when creating different designs for face-to-face apartments, rooms, or interior space that must have the same dimensions.
Complete the following steps to use the Mirror Items command:
-
Point to any line of the group that you want to mirror and right-click. In the pop-up menu, point to Wall Group and select Mirror Items.
-

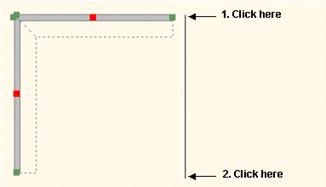

Specify the first and second point of the mirror line. The two specified points become the end points of a line upon which the walls are reflected.
-
When the message Do you want to delete the original items? appears, click Yes if you want to remove the original layout, or click No to keep it.
